Images | Circuit Images | Code | Max. pressure in bar |
Max. Flow in LPM |
Port Size |
---|

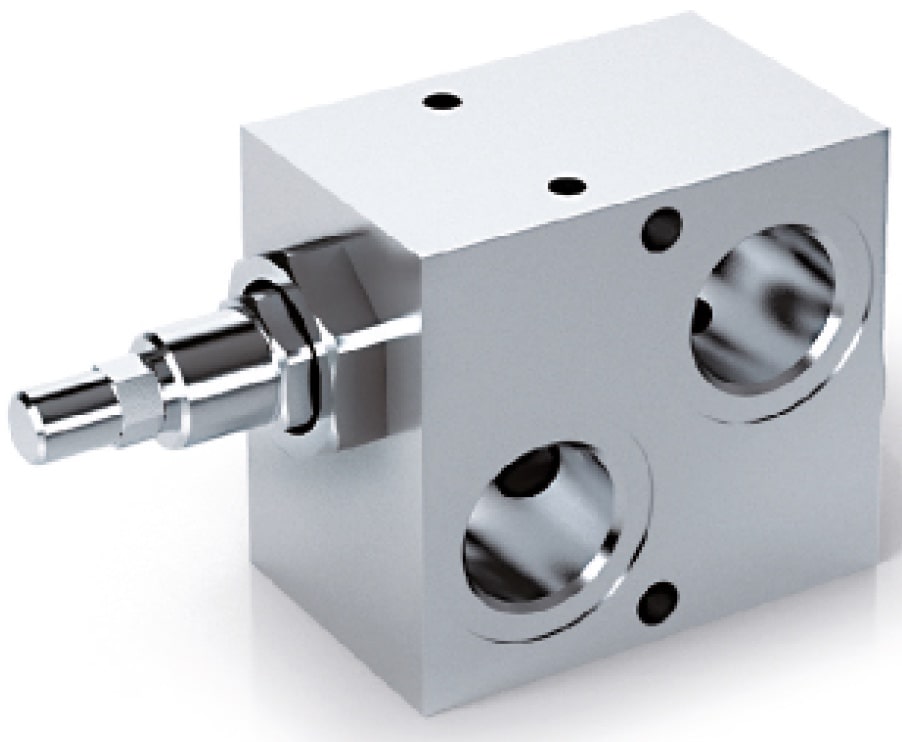

Cross Line Relief Valves | |||||
![]() |
![]() |
VAU 1/4” | 350 | 30 | 1/4” |
VAU 3/8” | 350 | 45 | 3/8” | ||
VAU 1/2” | 350 | 70 | 1/2” | ||
VAU 3/4” | 350 | 110 | 3/4” |
Cross Line Differential Area Relief Valve, 1” | |||||
![]() |
![]() |
VAU 1” | 350 | 160 | 1” |
Cross Line Differential Area Relief Valve With Anti Cavitation, 1” | |||||
![]() |
![]() |
VAUAC 1” | 350 | 160 | 1" |

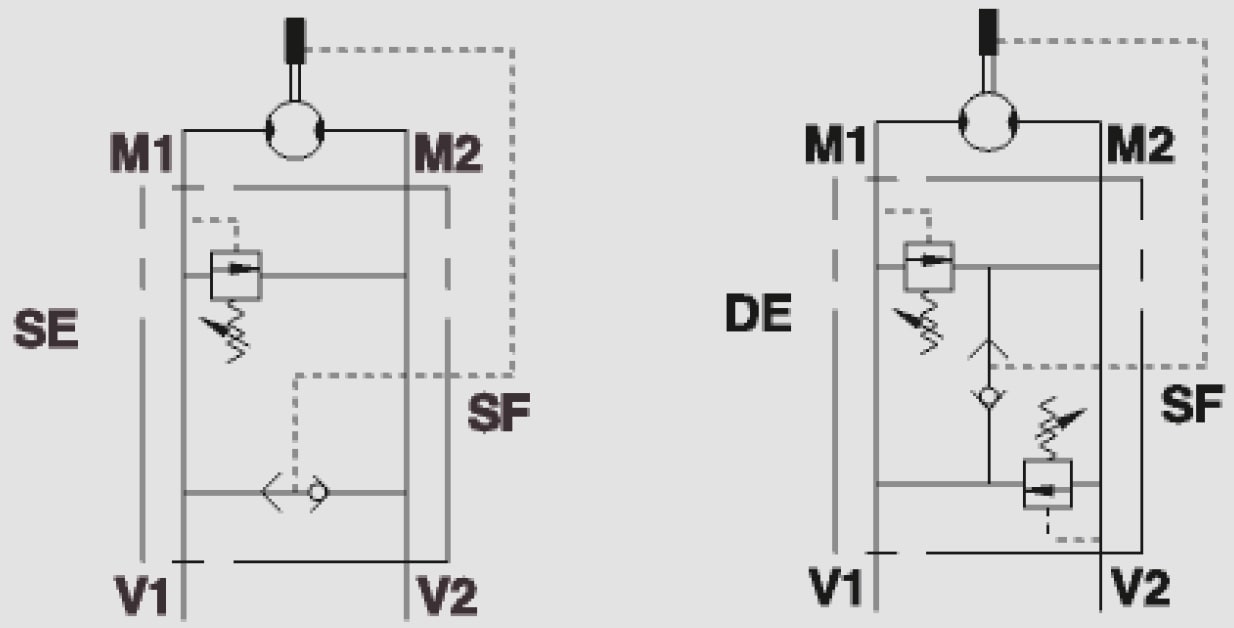

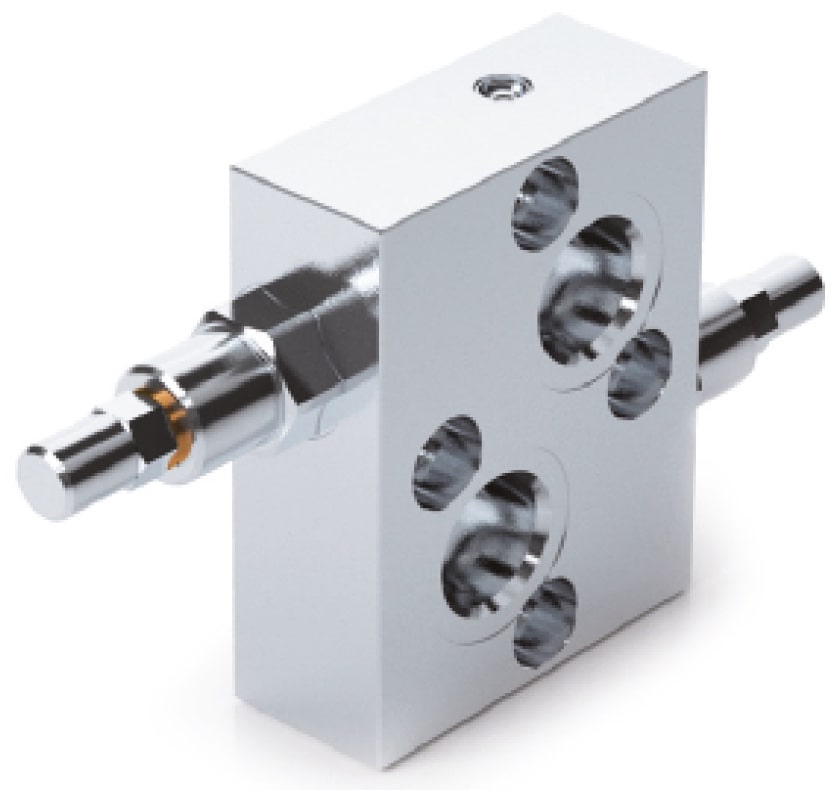

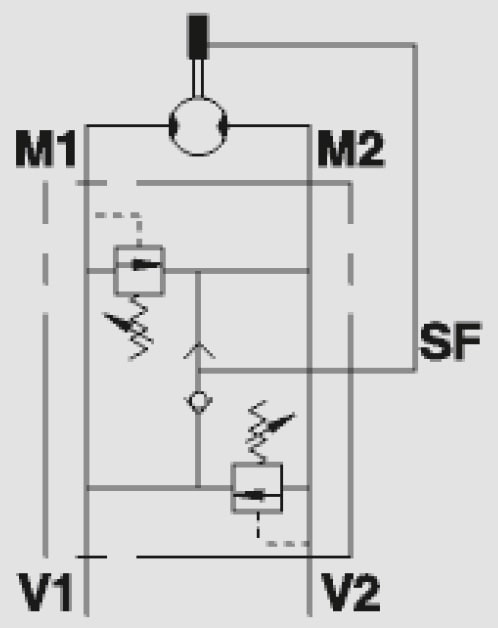

Dual Cross Line Relief Valves Flangeable On Danfoss Motors OMP/OMR | |||||
![]() |
![]() |
VAU 1/2” SE OMP/OMR | 350 | 60 | 1/2” |
VAU 1/2” SE OMP/OMR SF | 350 | 60 | 1/2” | ||
VAU 1/2” DE OMP/OMR | 350 | 60 | 1/2” | ||
VAU 1/2” DE OMP/OMR SF | 350 | 60 | 1/2” | ||
VAU 1/2” OMP/OMR AC | 350 | 60 | 1/2” |

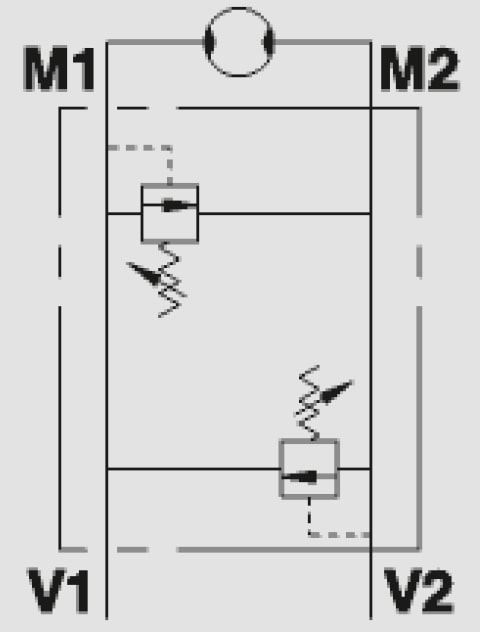

Dual Cross Line Relief Valves Flangeable On Danfoss Motors OMS | |||||
![]() |
![]() |
VAU 1/2” OMS | 350 | 50 | 1/2” |
VAU 1/2” OMS SF | 350 | 50 | 1/2” | ||
VAU 1/2” OMS SE | 350 | 50 | 1/2” | ||
VAU 1/2” OMS SE SF | 350 | 50 | 1/2” | ||
VAU 1/2” OMS AC | 350 | 50 | 1/2” |
Dual Cross Line Relief Valves Flangeable On Danfoss Motors OMT | |||||
![]() |
![]() |
VAU 3/4” OMT | 350 | 100 | 3/4” |
VAU 3/4” OMT SE | 350 | 100 | 3/4” |
Cross Line Relief Valves With Pilot Check Valves | |||||
![]() |
![]() |
VBAU 3/8” | 350 | 35 |
Dual Cross Line Relief Valves Flangeable On Danfoss Motors OMP/OMR By Screws | |||||
![]() |
![]() |
VAU 1/2” OM WSC | 350 | 50 | 1/2" |
VITE 1/2” | 350 | - | 1/2” |

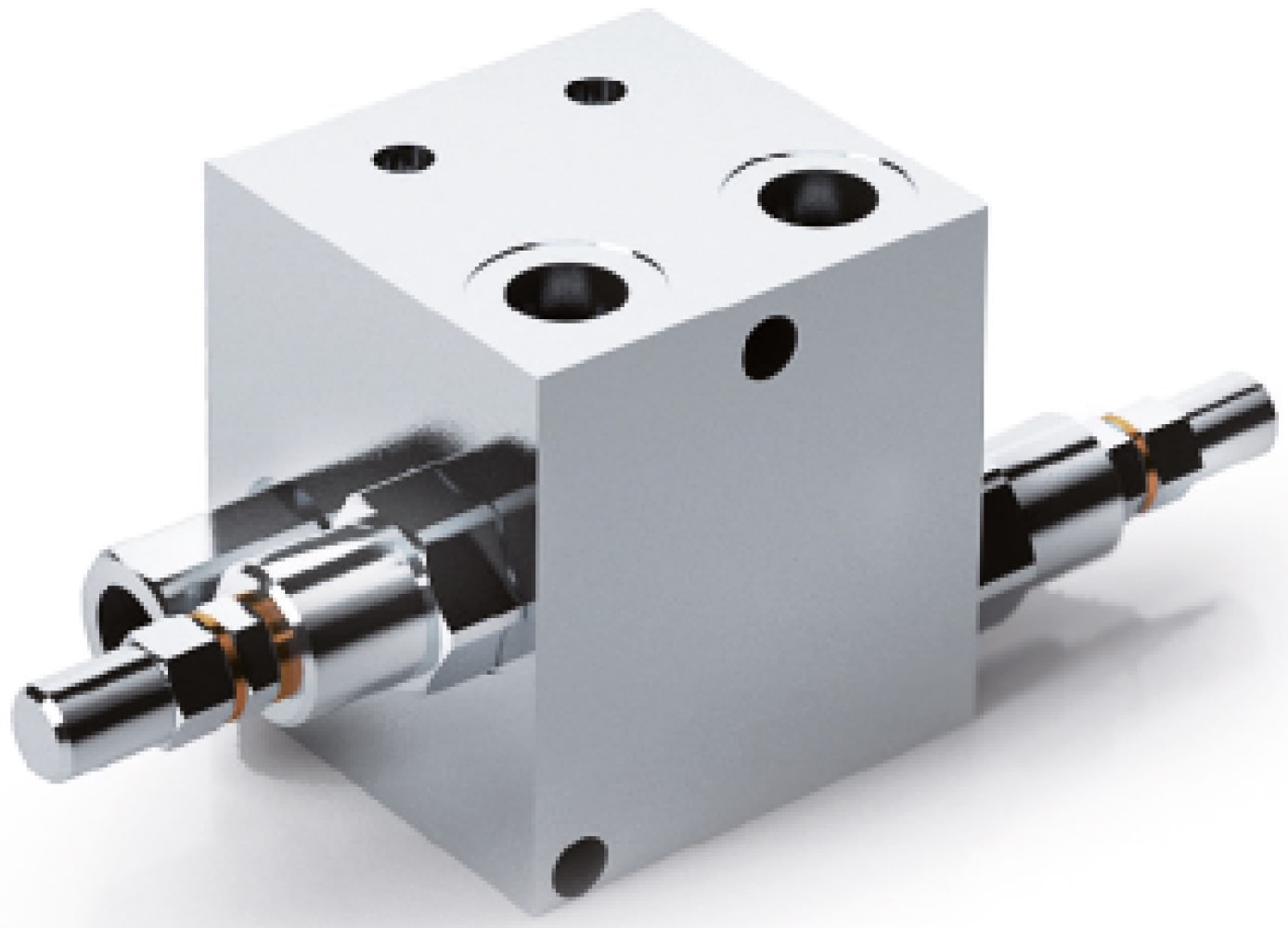

Dual Cross Line Relief Valves With Anti -Cavitation | |||||
![]() |
![]() |
VAUAC 2 3/8” | 350 | 45 | 3/8” |
VAUAC 2 1/2” | 350 | 70 | 1/2” | ||
VAUAC 2 3/4” | 350 | 110 | 3/4” |
Dual Cross Line Relief Valves Flangeable On Sam Hydraulik Motors AG-AR | |||||
![]() |
![]() |
VAU 1/2” AG - AR | 350 | 60 | 1/2” |
VITE 1/2” | 350 | - | 1/2” |

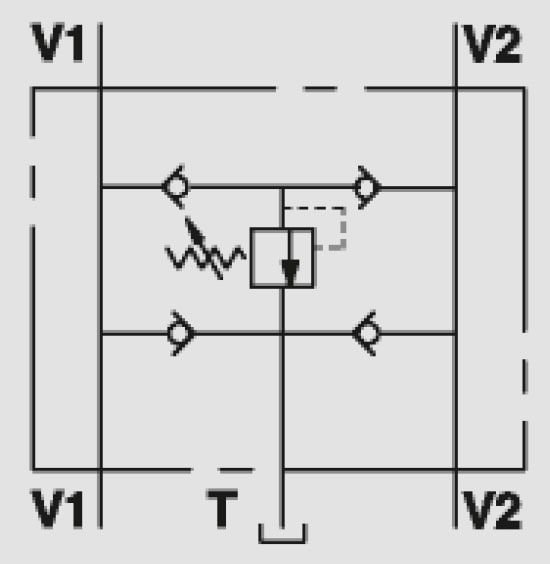

Cross Line Relief Valves With Anti -Cavitation With Single Adjustment | |||||
![]() |
![]() |
VAA/RU 1/2” | 350 | 60 | 1/2” |
