| Images | Circuit Images | Code | Max. pressure in bar |
Max. Flow in LPM |
Port Size |
|---|

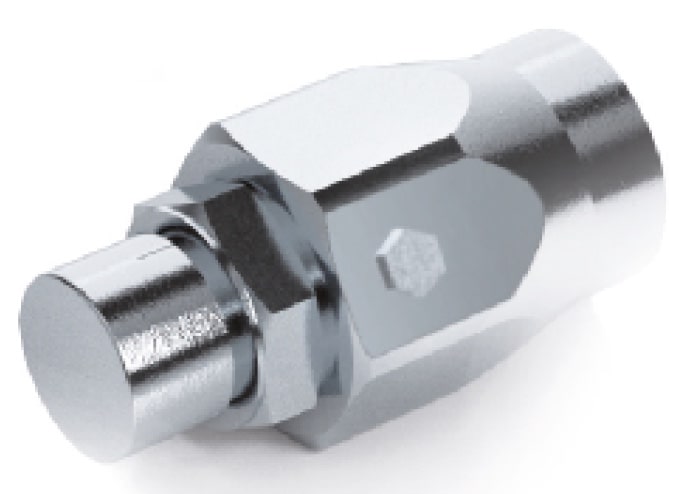

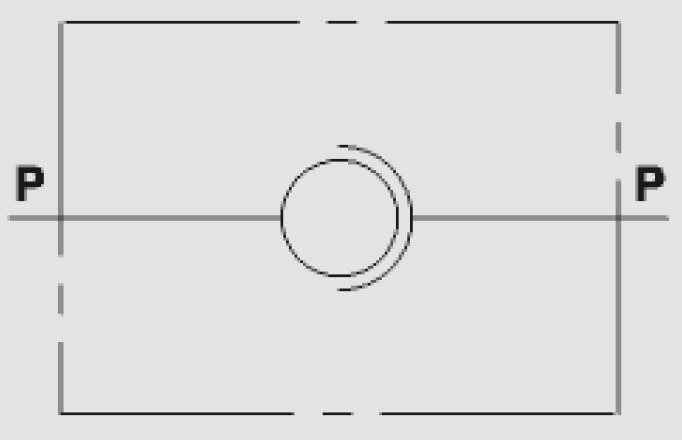

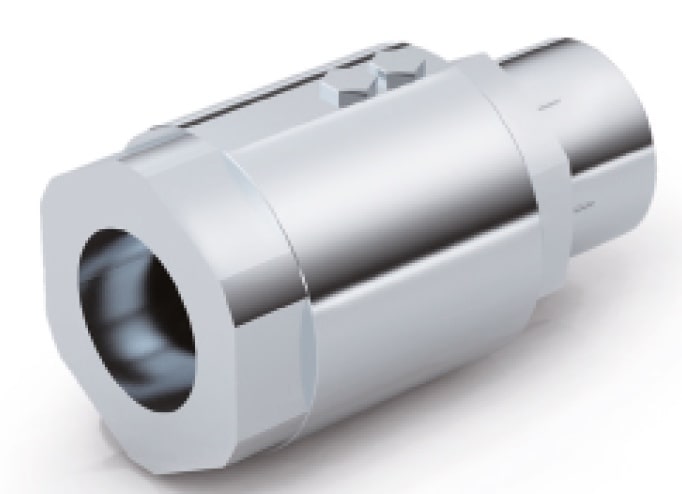

| In Line Rotating Coupling | |||||
|
|
 |
GGL 1/4” | 400 | 25 | 1/4” |
| GGL 3/8” | 400 | 35 | 3/8” | ||
| GGL 1/2” | 300 | 60 | 1/2” | ||
| GGL 3/4” | 300 | 100 | 3/4” | ||
| GGL 1” | 300 | 180 | 1” | ||
| GGL 1” 1/4 | 300 | 270 | 1 1/4” | ||
| GGL 1” 1/2 | 300 | 350 | 1 1/2” | ||
| GGL 2” | 250 | 700 | 2” | ||

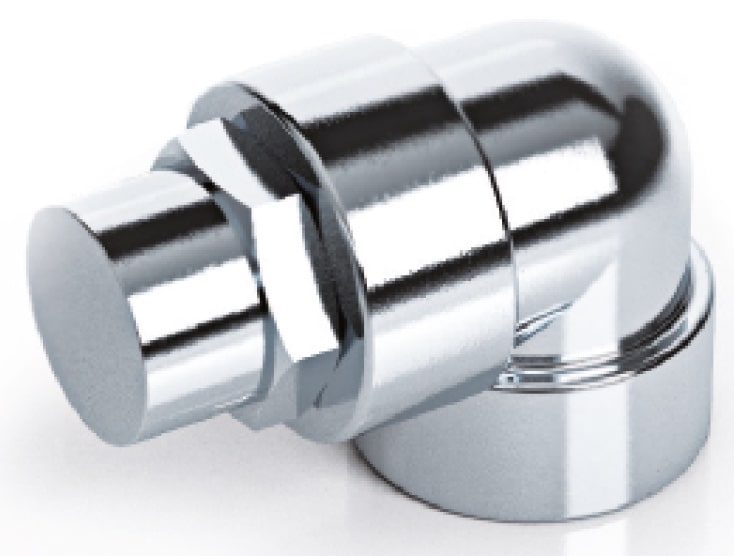

| 90° Rotating Coupling | |||||
|
|
 |
GG 90° 1/4” | 400 | 25 | 1/4” |
| GG 90° 3/8” | 400 | 35 | 3/8” | ||
| GG 90° 1/2” | 300 | 60 | 1/2” | ||
| GG 90° 3/4” | 300 | 100 | 3/4” | ||
| GG 90° 1” | 300 | 180 | 1” | ||
| GG 90° 1” 1/4 | 300 | 270 | 1 1/4” | ||
| GG 90° 1” 1/2 | 300 | 350 | 1 1/2” | ||
| GG 90° 2” | 250 | 700 | 2” | ||
