Solenoid Valves

Products Direction Control Valves Solenoid Valves
Images Circuit Images Code Max. pressure
in bar 		Max. Flow
in LPM		 Port Size
2/2 NORMALLY CLOSED - PILOT OPERATED SINGLE LOCK

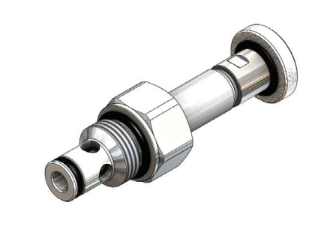

Cross Line Relief Valves Cross Line Relief Valves WE.S0.S08 350 40 SAE08-2

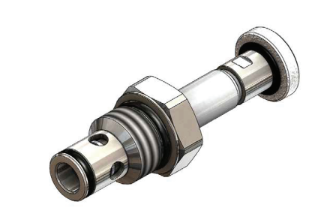

Cross Line Relief Valves Cross Line Relief Valves WE.S0.S10 350 80 SAE10-2

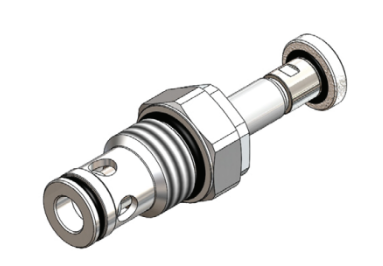

Cross Line Relief Valves Cross Line Relief Valves WE.S0.S12 350 150 SAE12-2
Cross Line Relief Valves Cross Line Relief Valves WE.T0.S08 350 40 SAE08-2
Cross Line Relief Valves Cross Line Relief Valves WE.T0.S10 350 80 SAE10-2
Cross Line Relief Valves Cross Line Relief Valves WE.T0.S12 350 150 SAE12-2

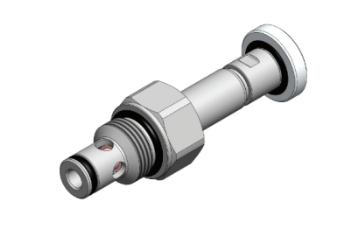

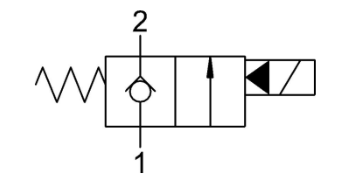

Cross Line Relief Valves Cross Line Relief Valves WE.G0.S08 350 40 SAE08-2

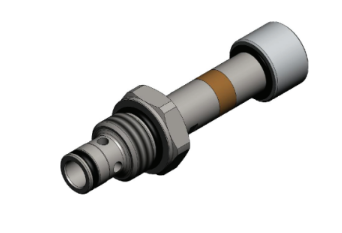

Cross Line Relief Valves Cross Line Relief Valves WE.R0.S08 350 40 SAE08-2
2/2 NORMALLY CLOSED - DIRECT ACTING DOUBLE LOCK

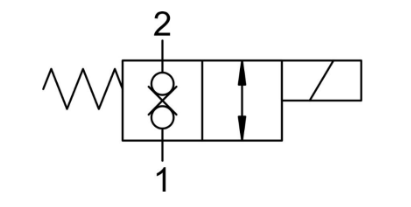

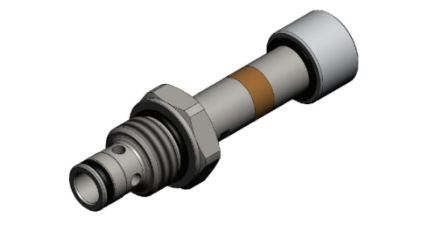

Cross Line Relief Valves Cross Line Relief Valves WE.D5.S08 250 30 SAE08-2
2/2 NORMALLY OPEN - PILOT OPERATED SINGLE LOCK

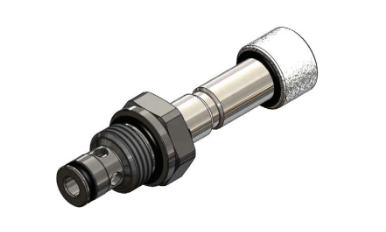

Cross Line Relief Valves Cross Line Relief Valves WE.20.S08 350 40 SAE08-2

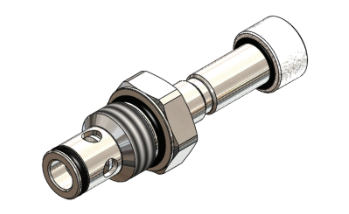

Cross Line Relief Valves Cross Line Relief Valves WE.J0.S10 350 40 SAE10-2
2/2 NORMALLY OPEN - PILOT OPERATED DOUBLE LOCK
Cross Line Relief Valves Cross Line Relief Valves WE.Y0.S08 350 40 SAE08-2
2/2 NORMALLY OPEN - DIRECT ACTING DOUBLE LOCK

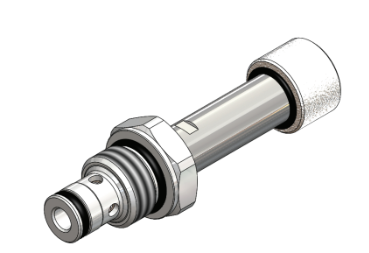

Cross Line Relief Valves Cross Line Relief Valves WE.E0.S08 250 15 SAE08-2

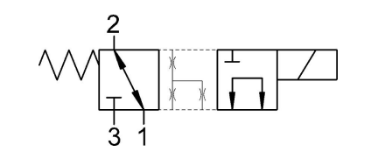

3/2 DIRECTIONAL - DIRECT ACTING SPOOL TYPE

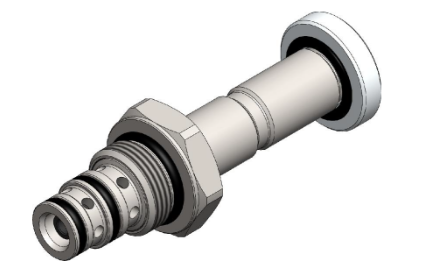

Cross Line Relief Valves Cross Line Relief Valves WE.P0.M18 (100) 210 7 R062
Cross Line Relief Valves Cross Line Relief Valves WE.P0.M18 (400) 210 7 R062
3/2 DIRECTIONAL - DIRECT ACTING SEATED TYPE

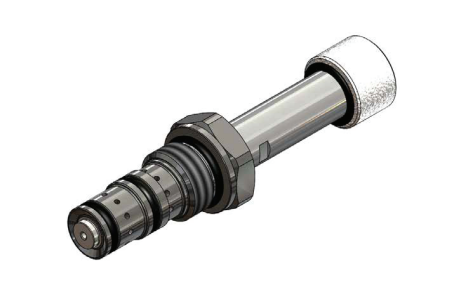

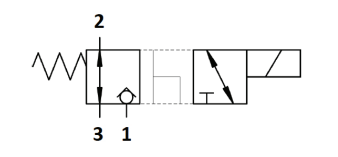

Cross Line Relief Valves Cross Line Relief Valves WE.C0.S08 (100) 250 10 SAE08-3
Cross Line Relief Valves Cross Line Relief Valves WE.C0.S08 (200) 250 10 SAE08-3

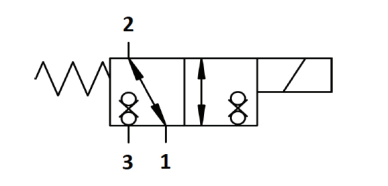

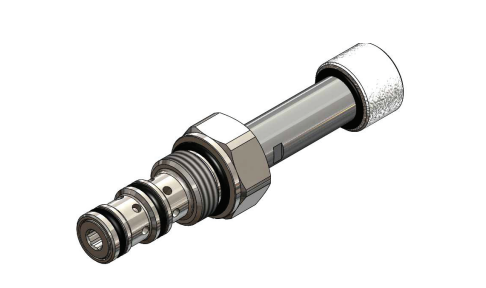

Cross Line Relief Valves Cross Line Relief Valves WE.I0.S08 250 10 SAE08-3
Cross Line Relief Valves Cross Line Relief Valves WE.I0.S10 250 20 SAE10-3

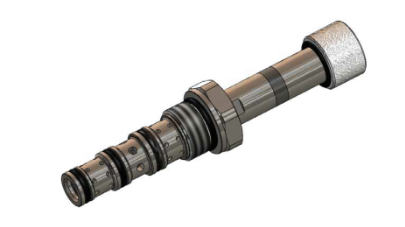

4/2 DIRECTIONAL - DIRECT ACTING SPOOL TYPE

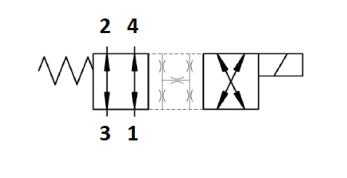

Cross Line Relief Valves Cross Line Relief Valves WE.A0.S08-A 250 20 SAE08-4

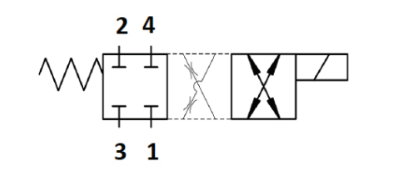

Cross Line Relief Valves Cross Line Relief Valves WE.A0.S08-B 250 20 SAE08-4

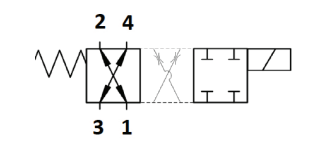

Cross Line Relief Valves Cross Line Relief Valves WE.A0.S08-C 250 20 SAE08-4

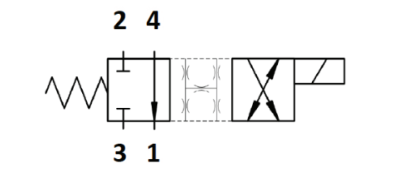

Cross Line Relief Valves Cross Line Relief Valves WE.A0.S08-D 250 20 SAE08-4

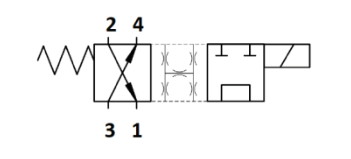

Cross Line Relief Valves Cross Line Relief Valves WE.A0.S08-E 250 20 SAE08-4

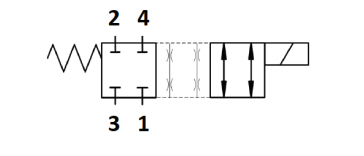

Cross Line Relief Valves Cross Line Relief Valves WE.A0.S08-F 250 20 SAE08-4

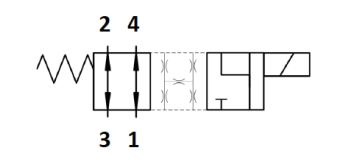

Cross Line Relief Valves Cross Line Relief Valves WE.A0.S08-G 250 20 SAE08-4

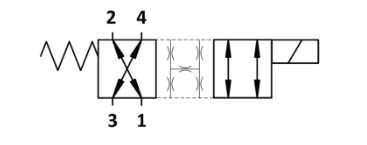

Cross Line Relief Valves Cross Line Relief Valves WE.A0.S08-H 250 20 SAE08-4

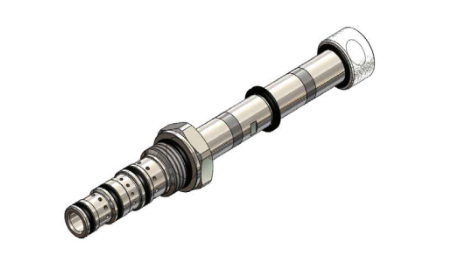

4/3 DIRECTIONAL - DIRECT ACTING SPOOL TYPE

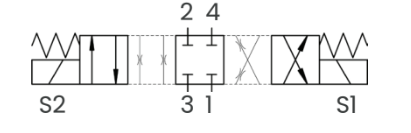

Cross Line Relief Valves Cross Line Relief Valves WE.B0.S08-A 250 10 SAE08-4

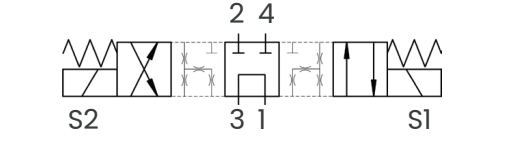

Cross Line Relief Valves Cross Line Relief Valves WE.B0.S08-B 250 10 SAE08-4

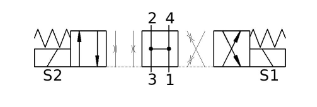

Cross Line Relief Valves Cross Line Relief Valves WE.B0.S08-C 250 10 SAE08-4

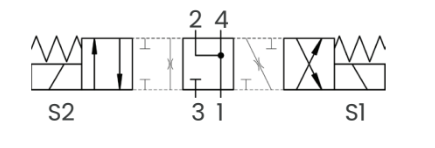

Cross Line Relief Valves Cross Line Relief Valves WE.B0.S08-D 250 10 SAE08-4
Cross Line Relief Valves Cross Line Relief Valves WE.B0.S08-E 250 10 SAE08-4
