| Images | Circuit Images | Code | Max. pressure in bar |
Max. Flow in LPM |
Port Size |
|---|

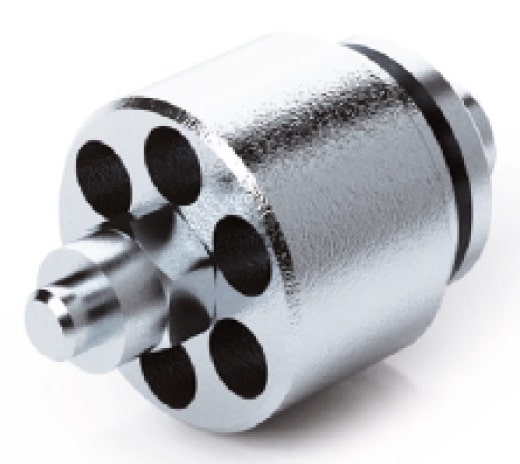

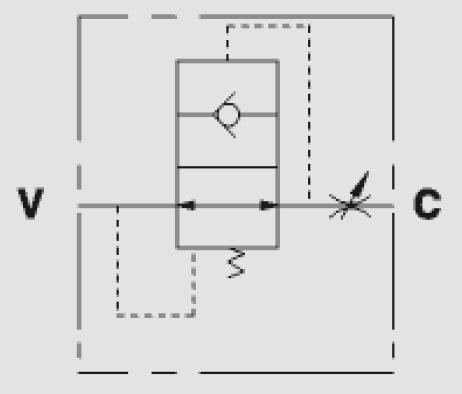

| Hose Burst Cartridge Valves | |||||
 |
|
VUBA 1/4” | 350 | 20 | 1/4” |
| VUBA 3/8” | 350 | 50 | 3/8” | ||
| VUBA 1/2” | 350 | 80 | 1/2” | ||
| VUBA 3/4” | 350 | 140 | 3/4” | ||
| VUBA 1” | 350 | 180 | 1” | ||

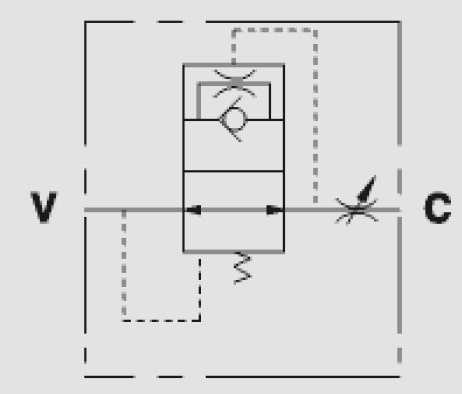

| Adjustable Hose Burst Valves DIN 2353 | |||||
 |
|
VUBA 3/8” DIN T10L | 350 | 50 | 3/8” |
| VUBA 3/8” DIN T12L | 350 | 50 | 3/8” | ||
| VUBA 3/8” DIN T15L | 350 | 50 | 3/8” | ||
| VUBA 1/2” DIN T15L | 350 | 80 | 1/2” | ||
